Sea-Doo 159 Degree Rotary Valve GS/ GSI/ GSX RFI/ GTI/ GTI LE/ GTI RFI/ GTS/ GTX/ GTX RFI/ HX/ SPX/ XP/ 3D RFI/ Challenger/ Explorer/ Speedster/ Sporster

Sea-Doo 159 Degree Rotary Valve GS/ GSI/ GSX RFI/ GTI/ GTI LE/ GTI RFI/ GTS/ GTX/ HX/ SPX/
Processing...
Brand: SBT
Code: 45-101-01A
OEM: 420924502
290924502
Quantity in Basket: None
Price: $31.55


Qty
Description

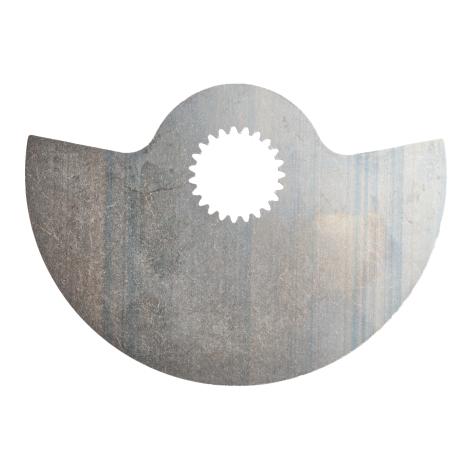

  • This is a new 159 Degree Rotary Valve.
  • A rotary valve refers to the fuel intake valve of earlier Sea-Doo two stroke engines.
  • The rotary valve is driven off of a gear on the rotary shaft in the crankcase between the cylinders.
  • This motion allows the intake port to be opened and closed in time with the engine power pulses.
  • The rotary valve allows the port to have no restriction.
  • Rotary valve engines are a very efficient design with complete control of airflow into an engine.
  • They allow the air/fuel mixture to flow without any airflow restrictions (unlike like reeds).
  • Fits: 420924502
  • 290924502

Applications1994 Speedster Rotary Valve
1994 XP Rotary Valve

1995 GTX 657 Rotary Valve
1995 HX Rotary Valve
1995 Speedster Rotary Valve
1995 Sportster Rotary Valve
1995 SPX 657 Rotary Valve
1995 XP Rotary Valve
1995 XP800 Rotary Valve

1996 Challenger Rotary Valve
1996 GSX Rotary Valve
1996 GTI Rotary Valve
1996 GTS Rotary Valve
1996 GTX Rotary Valve
1996 HX Rotary Valve
1996 Speedster Rotary Valve
1996 Sportster Rotary Valve
1996 SPX Rotary Valve
1996 XP Rotary Valve

1997 Challenger Rotary Valve
1997 Challenger 1800 Rotary Valve
1997 Explorer Rotary Valve
1997 GSX Rotary Valve
1997 GTX Rotary Valve
1997 HX Rotary Valve
1997 SPX Rotary Valve
1997 XP Rotary Valve
1997 GS Rotary Valve
1997 GSI Rotary Valve
1997 GTS Rotary Valve
1997 GTI Rotary Valve
1997 Speedster Rotary Valve

1998 Challenger Rotary Valve
1998 Challenger 1800 Rotary Valve
1998 GS Rotary Valve
1998 GTI Rotary Valve
1998 GTS Rotary Valve
1998 GTX RFI Rotary Valve
1998 Speedster Rotary Valve
1998 Sportster Rotary Valve
1998 Sportster 1800 Rotary Valve
1998 SPX Rotary Valve

1999 Challenger 1800 Rotary Valve
1999 GS Rotary Valve
1999 GSX RFI Rotary Valve
1999 GTI Rotary Valve
1999 GTS Rotary Valve
1999 GTX RFI Rotary Valve
1999 Speedster Rotary Valve
1999 Speedster SK Rotary Valve
1999 Sportster 1800 Rotary Valve
1999 SPX Rotary Valve

2000 Challenger Rotary Valve
2000 GS Rotary Valve
2000 GSX RFI Rotary Valve
2000 GTI Rotary Valve
2000 GTS Rotary Valve
2000 GTX RFI Rotary Valve
2000 Sportster Rotary Valve

2001 Challenger Rotary Valve
2001 GS Rotary Valve
2001 GSX RFI Rotary Valve
2001 GTI Rotary Valve
2001 GTS Rotary Valve
2001 GTX RFI Rotary Valve

2002 Explorer Rotary Valve
2002 GTI Rotary Valve
2002 GTI LE Rotary Valve
2002 GTX RFI Rotary Valve
2002 Sportster LT Rotary Valve

2003 GTI Rotary Valve
2003 GTI LE RFI Rotary Valve

2004 GTI STD Rotary Valve
2004 GTI LE Rotary Valve
2004 GTI RFI LE Rotary Valve
2004 GTI RFI STD Rotary Valve

2005 3D RFI Rotary Valve
2005 GTI Rotary Valve
2005 GTI RFI LE Rotary Valve
2005 GTI RFI STD Rotary Valve
