Sea-Doo Wear Ring GSX /GTX /XP /LRV /RX /LE /GTI /GTS /Sportster /3D /Speedster /947 DI 271000653
Processing...
Brand: SBT
Code: 78-109-02
OEM: 271000653
Quantity in Basket: None
Price: $38.85

Qty
Description

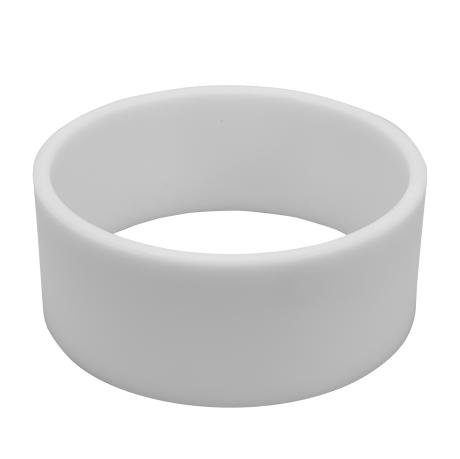

Sea-Doo (or Seadoo) Wear Ring (155mm).
Works with all OE Plastic Pump 155mm Housings

SBT's Delrin wear rings are created as a replacement to OEM wear rings for your Seadoo.
The Seadoo wear ring aids in stopping speed-robbing cavitation in your worn jet pump.
Our SBT Delrin wear rings and liners will restore the tight clearance to your impeller.
A Jet Ski or SeaDoo wear ring is a sacrificial ring that is installed into the jet pump to provide a minimal clearance for the impeller to build thrust. More specifically, SBT has engineered our replacement Seadoo wear rings for reduced friction using one hundred percent Delrin instead of fiberglass filled plastics. Polyoxymethylene or polyacetal, commonly known as Delrin, is an engineering thermoplastic used in precision parts that require high stiffness, low friction and excellent dimensional stability. The Delrin wear rings have very low water absorption and are chemically resistant because they are acetal based plastics. The SBT wear ring performs better and is more economical, which allows you to replace the wear ring every time you are doing work on the jet pump.

Applications1997 GSX LIMITED WHITE MOTOR Wear Ring
1998 GSX (98 PRODUCTION) SILVER MOTOR Wear Ring
1998 GTX LIMITED Wear Ring
1998 GTX LIMITED EARLY NO CARBONE RING Wear Ring
1998 XP LIMITED Wear Ring
1999 GSX LIMITED Wear Ring
1999 GTX LIMITED Wear Ring
1999 XP LIMITED Wear Ring
2000 GTX Wear Ring
2000 GTX DI Wear Ring
2000 LRV Wear Ring
2000 RX Wear Ring
2000 RX DI Wear Ring
2000 XP Wear Ring
2001 GTI 5522,5523 Wear Ring
2001 GTS Wear Ring
2001 GTX Wear Ring
2001 GTX DI Wear Ring
2001 LRV Wear Ring
2001 RX Wear Ring
2001 RX DI Wear Ring
2001 XP Wear Ring
2002 GTI Wear Ring
2002 GTI LE Wear Ring
2002 GTX Wear Ring
2002 GTX 4 TEC Wear Ring
2002 GTX DI Wear Ring
2002 LRV DI Wear Ring
2002 RX Wear Ring
2002 RX DI Wear Ring
2002 XP Wear Ring
2003 GTI Wear Ring
2003 GTI LE Wear Ring
2003 GTI LE RFI Wear Ring
2003 GTX 4 TEC Wear Ring
2003 GTX DI Wear Ring
2003 LRV DI Wear Ring
2003 RX DI Wear Ring
2003 XP DI Wear Ring
2004 3D RFI Wear Ring
2004 GTI Wear Ring
2004 GTI LE Wear Ring
2004 GTI LE RFI Wear Ring
2004 GTI RFI Wear Ring
2004 XP DI Wear Ring
2005 3D RFI Wear Ring
2005 GTI Wear Ring
2005 GTI LE RFI Wear Ring
2005 GTI RFI STD Wear Ring
2006 3D DI Wear Ring
2007 3D 947 DI Wear Ring


2000 SPORTSTER LE Wear Ring
2002 SPORTSTER LE Wear Ring
2003 SPORTSTER 4 TEC Wear Ring
2003 SPORTSTER LE Wear Ring
2004 SPEEDSTER 200 TWIN 4 TEC 1ST EDITION Wear Ring
2004 SPEEDSTER 200 TWIN 4 TEC 2ND EDITION Wear Ring
2004 SPORTSTER LE DI Wear Ring
2005 SPORTSTER LE DI Wear Ring
2006 SPORTSTER LE DI Wear Ring
