Sea-Doo Solenoid Wire Harness Update Kit

Sea-Doo Solenoid Wire Harness Update Kit
Processing...
Brand: SBT
Code: 15-100-02
OEM: 278000342
278000009
278000077
Quantity in Basket: None
Price: $34.95


Qty
Description

SBT is now offering a kit that allows the use of the latest version of SeaDoo starter Solenoids on older style Sea-Doo watercraft (1989-1995). The SBT kit has the wire harness and the Starter Solenoid (Starter Relay)

Correlating OE numbers:

  • 278000342
  • 278000009
  • 278000077
  • 278000201
  • 278000482
  • 295500294
  • 295500900

Applications1989   SP
1990   SP
1991   SP
1991   XP
1990   GT
1991   GT
1992   SP
1992   XP
1992   GTS
1992   GTX
1993   SPX
1993   SPI
1993   GTS
1993   GTX
1994   GTS
1994   GTX
1993   XP
1994   XP
1994   XPI
1994   SP
1994   SPI
1994   SPX
Warranty1 year, manufacturers warranty.
Installation

The old style Starter solenoid (or Starter Relay) that Sea-Doo used from 1989 thru 1995 is now obsolete from Sea-Doo and most aftermarket suppliers have discontinued it. The old style solenoid, has 2 larger posts for the battery cables, and 2 smaller posts for the starter control wires coming from the start switch.

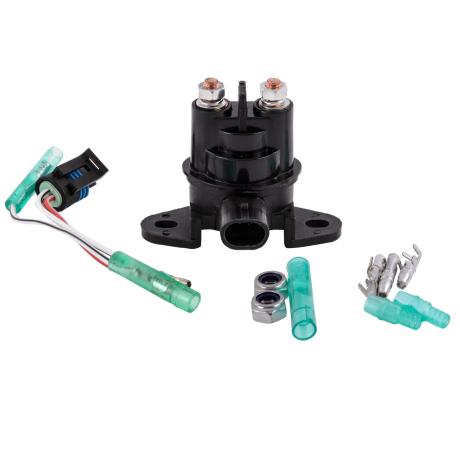

The new style starter solenoid along with the harness kit. Note the 2 larger posts for the battery cables are the same. The mounting bracket is the same. A wire harness is supplied that will plug into the Solenoid and then the 2 wires will need to be wired into the existing harness using the connectors supplied in the kit.
